Linkind ESP32 Smart Switch & Dimmer - How To Flash Tasmota


Buy the 4 pack on Amazon

Can we flash Tasmota on it?  YES!

But can we flash ESPHome on it instead?  YES! (Thanks to zeroping!)

The Linkind Smart Switch is rather unique.  It uses an ESP32 chipset with Bluetooth support, two independent buttons, two independent LEDs (behind the small hole) of green/red and one relay.  It ships with a non branded white screwless decora faceplate.  The switch can also be used in multi-gang boxes as they have the additional mounting holes.

Bought the dimmer?  The instructions for flashing/disassembly will be the same except when you get to the software to push over to the dimmer itself.  Software will be linked down below for the dimmer in the steps.

(Click any of the photos for a larger view)

Relay ratings

To open the switch, there 4 small torx screws in the face. I used the one out of  the iFixIt kit but a small flat head screwdriver could also be used.  Remove the four screws on the face and pull it straight up.  There will be some tension as 8 header pins intersect the faceplate board.

Take note, the switch will not power up unless the air gap switch (reddish switch on the right) is depressed by the faceplate air gap insert (safety feature)

Pop the board out with a spudger or flat head screwdriver and flip it over.


Look for the row of pads that have VCC1, GND, etc.

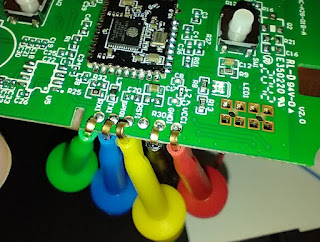

You can choose to either bend some clips or solder to the pads.  Remember to connect RX to TX and TX to RX on your USB TTL flasher.  The pads are as follows from Left to Right; RX, TX, GPIO Zero, skip RST, Ground, and 3.3 volts.  DO NOT apply 5V to this pad, the magic smoke might come out.  GPIO Zero will also need to be connected to ground either for the first few seconds while power is applied or the entire flashing time.


Solder method

Bent clip method (credit: @tony on digiblurDIY Discord)



I use a USB cable with an inline power switch to make flashing easier but it isn't required.  The ESP32 on this switch requires the Tasmota32 Solo1 version bin file.  You can flash this version straight from your browser by going to https://tasmota.github.io/install/

But I want to use ESPHome!?!?  Zeroping has the code for you

If you bought the dimmer, go ahead and follow through the same steps.  There is an additional file to push to the switch as the last step.


Select Tasmota32 Solo1, check reset defaults and click install.  If you want Bluetooth scanning too, scroll all the way down and choose "Tasmota32 Solo1 Thermostat + BLE". NOTE:  It has been found due to the ESP32, power requirements are higher and some USB TTL adapters may not be able to power the device properly and may fail during the flash and/or the WiFi setup of the device.  I was able to flash and power the switch with this adapter CP2102 USB TTL


Once it is complete you can remove any wires, reassemble the switch and power the device via mains AC power.


Add the device to your network via the AP mode (ex: tasmota_XXXX) - Browse to 192.168.4.1, pick your WiFi network and enter your WiFi password.


Browse to the Device IP address.  Click Consoles then Console  (sometimes the Tasmota ESP32 webserver can be laggy and refresh or multiple clicks is required)


Paste in the following command all on one line and hit enter (if you bought the dimmer skip to the dimmer subsection below).

backlog template {"NAME":"Linkind Switch ESP32Solo WS240010008","GPIO":[0,0,0,0,0,224,1,1,0,0,288,0,1,1,0,0,0,0,0,0,0,576,321,0,0,0,0,0,33,32,0,0,0,0,0,0],"FLAG":0,"BASE":1} ; Delay 1 ; Module 0


The switch should reboot and if you return to the main menu it should show the switch name and the toggle button should be available.  You can now add the switch in your home automation platform.  If you are using Home Assistant, I highly recommend the Tasmota HA integration method.

Optional: If a Red LED while Off and Green LED while On is desired paste the following rule into the Tasmota console.  If you want opposite colors, edit the template in the configure template screen and transpose Led_i with Led and vice versa. The "i" stands for inverted.  Copy the below rule as one line to the Tasmota console:
Rule1 on power1#state do backlog ledpower1 %value%; ledpower2 %value% endon
 on power1#boot do backlog ledpower1 %value%; ledpower2 %value% endon
Activate the Rule with
Rule1 1

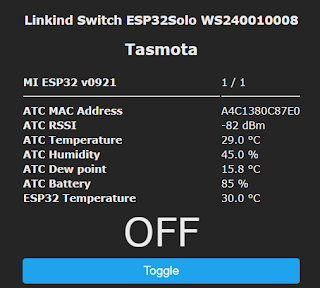

The ESP32 Solo supports Bluetooth scanning too with the correct bin file.  Currently use the Tasmota32 Solo1 Thermostat + BLE file.  Bluetooth was tested by a couple of us including myself extensively, it seems to work well even being a single core ESP32.  Check out the Tasmota Blerry Project.

NOTE as of 1/4/2022 the Thermostat + BLE bin file has a bug with the PowerOnState.  It will always cycle the relay off when the device is rebooted via power or via software.  The normal Solo bin without BLE support does not have this issue, you can also compile your own bin without thermostat to correct this bug.

credit: @tony on digiblurDIY Discord

If you have any questions or get stuck during the process, join us in the Discord chat (link below)

Additional Dimmer Instructions

Currently as of 2021/11/01 pcdiem as graciously provided a precompiled bin file with Bluetooth support and the necessary code to make this dimmer work.  This replaces the previous proof of concept solution with the Berry script files.  No template, no scripts, etc is required.  Go to the following webpage and download the bin file with or without Bluetooth support.


Do I need bluetooth support?  If you plan on receiving bluetooth sensor readings such as from these sensors then yes.  If no, then choose no bluetooth support bin, you can always upgrade the software via the web GUI of Tasmota later if necessary.

Navigate to the Web GUI of the Linkind dimmer.  Choose Firmware Upgrade.  Select Browse.  Choose the bin file downloaded from the link above.  It should reboot after a few minutes and return to the main menu of Tasmota.



Choose Configuration then Configure Module


Select the Linkind, then hit Save.


The dimmer is now ready to be added to your home automation software such as Home Assistant.  If necessary you may need to change the dimmerrange value on the Tasmota console to fit your scale of dimming on the bulbs you have connected.
